BATTERY CHARGER MODULE " CABUR "
FOR POWER SUPPLY 1-10A
MODEL : CSBC
P/ N : XCSBC

Accessory for charging buffer
batteries
• Battery charger
• Allows to connect in redundant parallel two power supplies
• Suitable for power supplies up to 10 A
• Battery protection fuse
• Battery feedback protection diode
• Current charge limiting resistor

VERSIONS Cod. XCSBC
CSBC
GENERAL TECHNICAL DATA
Power supply rated voltage 6...30 Vdc
Power supply rated current > 3 A
Load rated voltage 6...29.5 Vdc
Load max current 10 A
Charge current limitation ( 1)
Battery disconnecting voltage not available
IN/ OUT drop voltage 0.5 V
Battery protection fuse F1 = T 6.3 A / F2 = T 1 A
Protections battery short circuit / overload ( 2)
Alarm signal —
Operating temperature range – 10...+ 50° C
Reference Standards IEC 664-1, DIN VDE
Overvoltage category/ Pollution degree II / 2
Protection degree IP 20 IEC 529, EN60529
Connection terminal 2.5 mm² fixed screw type
Housing material UL94V-0 plastic material
Approx. weight 80 g ( 2.82 oz)
Mounting information vertical on rail, adjacent
MOUNTING ACCESSORIES
Mounting rail type according to IEC60715/ TH35-7.5 PR/ 3/ AC, PR/ 3/ AC/ ZB, PR/ 3/ AS, PR/ 3/ AS/ ZB
Mounting rail type according to IEC60715/ G32 PR/ DIN/ AC, PR/ DIN/ AS, PR/ DIN/ AL

APPLICATIONS

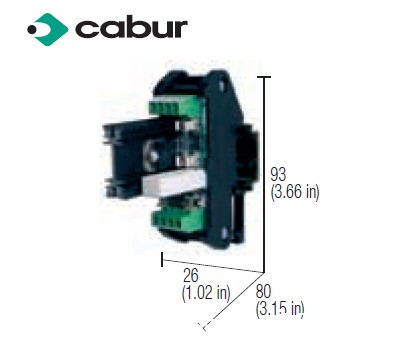

The depth dimension includes the terminal blocks and the DIN
rail clamp.
( 1) The charging current is dependent on the battery type and
the required level of charge, it' s about:
- 0, 5A max @ 12Vdc battery
- 1A max @ 24Vdc battery
( 2) The device do not avoid total discharge which always
shortens battery life.
1. Battery charger
With this module is possible to
use a Cabur power supply as a
battery charger while it is feeding
the load.
The diode provides decoupling
between the battery and the
power supply; the resistance limits
the current charge limiting power
supply output current and assuring
longer life to the battery. The
F1 fuse protects the battery and
its wiring against short circuit.
The next picture shows the connections.
2. Parallel connection of power
supplies
It is possible to use this module
also to connect two power supplies
in parallel, not provided with
output decoupling diode, eliminating
“ Fuse 2” in series to charging
current limiting resistor.
The next picture shows the connections.
